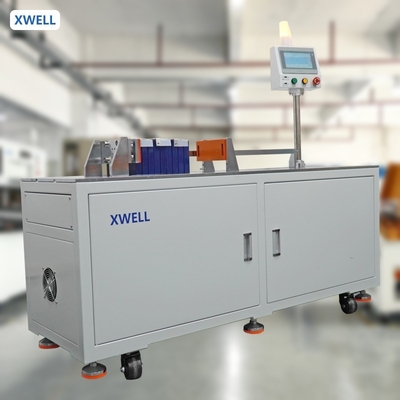

PLC-Controlled Prismatic Battery Cell Stacking Machine with Servo Motor

Guangdong Xwell Technology Co., Ltd. is a comprehensive company with 21 years of experience in the new energy battery industry. To create more economic value and offer one-step service, we combine all knowledge and resources to provide complete solutions in the battery industry, including battery laboratory equipment, battery production equipment, battery pack equipment, laser welding machines, plastic ultrasonic welding machines, metal ultrasonic spot welding machines, wire ultrasonic welding machines, and most accessories. We have exported to over 60 countries worldwide in the past 10 years and have passed CE safety certification. With rich technology and capital resources, we emphasize new product innovation, introducing at least one new machine design annually. Creating value for customers first is our path to achieving self-worth. We look forward to cooperating with you!

• Computer controlled, easy to operate
• Adaptable to various battery sizes with editable parameters for simple type changes
• Built-in high-precision pressure sensor with accuracy within 0.1KG
• Screw module + servo motor + reducer control for large extrusion output force and high positioning accuracy

• Applicable battery model: Prismatic cell: 100Ah-280Ah
• Module compatible size specifications: Length: 200-900mm, width: 100-320mm, height: 80-250mm
• Probability of equipment damage to products: ≤0.1%
• Equipment program control method: PLC control
• Capacity speed: ≥8ppm (Specific depends on manual operation)
• NG equipment failure rate: ≤1% (Malfunctions caused solely by equipment)
• Squeeze pressure range: 0-500kg, with red buzzing light alarm function when reaching set upper limit
• Squeeze stroke range: 0-110mm adjustable
• High-precision pressure load gauges with accuracy: 0.1%
• Squeezing and moving with repeated positioning accuracy: ±0.05mm
• Real-time monitoring of extrusion distance and extrusion pressure with dual protection

• Ambient temperature: 5ºC-35ºC
• Humidity: 20%-90%
• Air Pressure: 0.5～0.6 Mpa
• Supply voltage: 220V-50Hz/60Hz
• Area to weight ratio: ≤200kg/M²

A: We are professional battery machine manufacturer with our own factory and brand. We provide all kinds of OEM/ODM services for clients, can produce by your samples or technical drawings. We can build the molds and fixtures.

A: Yes, we welcome sample order to test and check quality.

A: We will offer you the best quotation in 12 hours after we get the product specifications such as voltage capacity application etc.

A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.

A: Generally, it will take 15-20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

A: Yes, We have professional QC team to make sure that the product in good condition before send out the goods.

A: 1. We keep good quality and competitive price to ensure our customers benefit;
2. We respect every customer as our friend and we sincerely do business and make friends with them.
