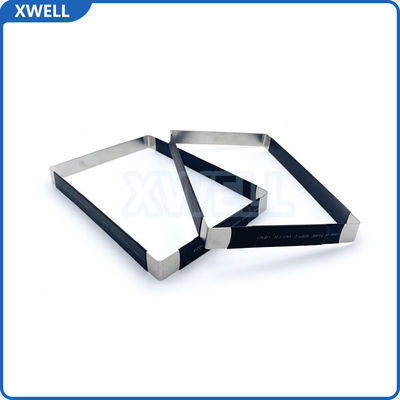

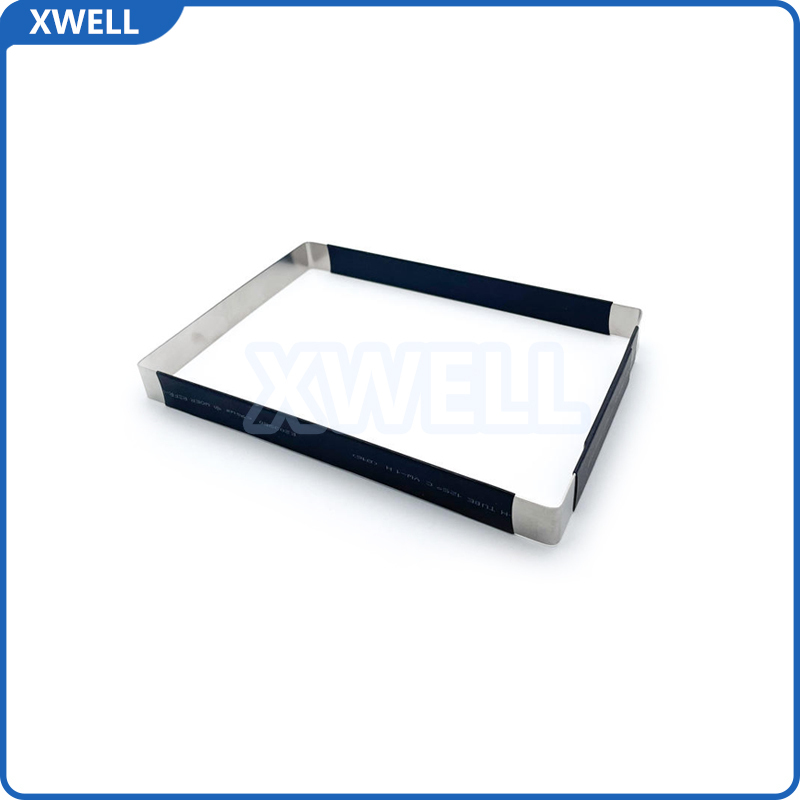

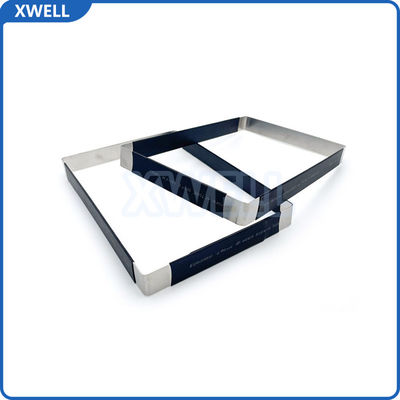

Stainless Steel Belt for Lithium Battery Packs 1300Mpa Tensile Strength
Dettagli:
| Luogo di origine: | Cina |
| Marca: | XWELL |
| Certificazione: | CE |
| Numero di modello: | Cintura in acciaio inossidabile |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 1pcs |
|---|---|
| Prezzo: | USD $1~$1000 |
| Imballaggi particolari: | Cartone |
| Tempi di consegna: | 5-7 giorni |
| Termini di pagamento: | T/T, Western Union, L/C, D/A, D/P |
| Capacità di alimentazione: | 10000 pezzi al mese |
|
Informazioni dettagliate |
|||
| Materiale: | SUS201 SUS301 SUS304 | Resistenza alla trazione: | ≥1300MPa |
|---|---|---|---|
| Forza di snervamento: | ≥1000MPa | Requisiti di isolamento: | CC 1000V |
| Requisiti di tensione: | 2700v DC | Corrente di perdita: | < 0,1 mA |
| Grado di protezione: | Livello UL94v0 | ||
| Evidenziare: | stainless steel battery belt,lithium battery pack belt,1300Mpa tensile battery belt |
||
Descrizione di prodotto
Special Stainless Steel Belt for Lithium Battery Packs Bending Cutting Welding Processing Services
Product Overview
Our Steel Strapping, specifically engineered for assembling prismatic lithium-battery modules in energy storage packs, offers broad compatibility with various sizes and types of prismatic lithium-battery modules. Widely applied across diverse energy storage scenarios, it features high strength and excellent fatigue resistance.
Key Features
- Precisely engineered stainless-steel strips meeting strict tolerances
- Thickness range: 0.03 mm - 3.0 mm (customizable per grade/application needs)
- Width range: 1.5 mm - 600 mm (optimized for precision integration)
- Enables seamless integration in battery-pack assembly processes
Technical Specifications
| Grade | 300 Series | Technique | Bending |
|---|---|---|---|
| Tolerance | ±1% | Steel Grade | 304, 201 |
| Surface Finish | TSHS | Standard | JIS |
| Place of Origin | Tianjin, China | Delivery Time | 8-14 days |
| Width | Customizable | Length | Customizable |
| Brand Name | HY | Model Number | Customizable |
| Application | Manual Packing | Processing Service | Bending, Welding, Decoiling, Punching, Cutting |
| Product Name | Steel Belt | Application | Lithium battery module building |
| Material | SUS301 | Tensile Strength | ≥1300Mpa |
| Yield Strength | ≥1000Mpa | Insulation Requirements | 1000V DC |
| Voltage Requirements | 2700V DC | Leakage Current | <0.1mA |
| Degree Of Protection | UL94V0 level | Anti-vibration Requirements | GB/T 31467.3 |
Applications
- Energy-Storage Systems: Used to assemble prismatic lithium-battery modules into larger arrays in large-scale energy-storage systems
- Key Material Advantage: Relies on the corrosion resistance of 304 (and partially 201) stainless steel
- Corrosion Resistance Need: Energy-storage systems may face diverse environmental conditions over time
Why Choose Us?
- Years of Experience: 15 years in battery materials and accessories business with rich industry expertise
- Global Customer Recognition: Served customers worldwide with highly praised products and services
- Diverse Application Coverage: Wide application in battery-related fields from lithium battery electrode fixing to manufacturing bundling
- Reliable Service: Professional pre-sales, in-sales, and after-sales services ensuring customer satisfaction
