Insulation Highland barley paper 18650 21700 lithium battery hollow insulating paper gasket high temperature motor green shell paper
Dettagli:
| Luogo di origine: | Cina |
| Marca: | XWELL |
| Certificazione: | CE |
| Numero di modello: | Isolazione Carta di orzo di montagna |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 1pcs |
|---|---|
| Prezzo: | USD $0.1~$1000 |
| Imballaggi particolari: | Cartone |
| Tempi di consegna: | 5-7 giorni |
| Termini di pagamento: | T/T, Western Union, L/C, D/A, D/P |
| Capacità di alimentazione: | 100000 pezzi al mese |
|
Informazioni dettagliate |
|||
| Spessore: | 0.1 | 0.2 | 0.3 | 0.4 | 0.5 | Costume | Numero di modello: | Fare riferimento all'elenco dei modelli di seguito |
|---|---|---|---|
| Nome prodotto: | Nastro di carta d'orzo dell'altopiano | Colore: | Ciano |
| Spessore (mm): | 0.1 | 0.2 | 0.3 | 0.4 | 0.5 | Costume | Larghezza (mm): | Da 1 mm a 1000 mm | Costume |
| Lunghezza (m): | 50 | 100 | 200 | 300 | Costume | Applicazione: | Batteria 18650 21700 26650 |
| Evidenziare: | Highland Barley Paper Tape for lithium battery,18650 battery barley paper tape,21700 lithium battery adhesive tape |
||
Descrizione di prodotto
Insulation Highland barley paper 18650 21700 lithium battery hollow insulating paper gasket high temperature motor green shell paper
Product Overview

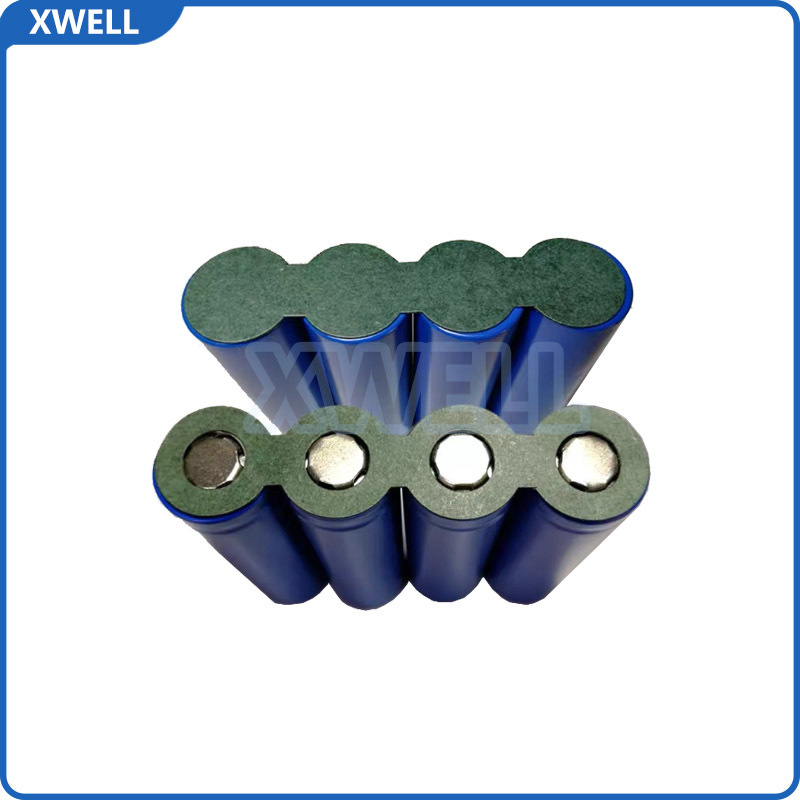

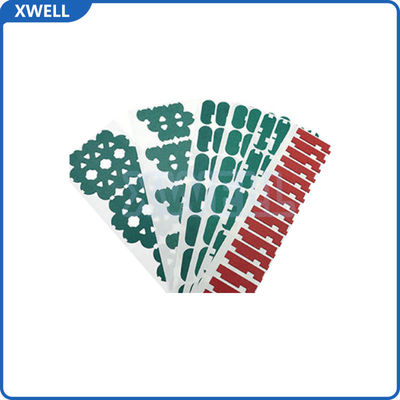

Our Insulation Highland Barley Paper is made laminating a polyester film to one layer of insulation paper. The product can be supplied cut in rolls, sheets or die-cut pieces according to customer specs. ideal for 18650/21700 lithium batteries as hollow insulating gaskets. Also fits high-temperature motors. Features green shell, offers reliable insulation, perfect for battery protection.
Key Features
- Universal Compatibility: Designed specifically for 18650/21700 lithium batteries as hollow insulating gaskets, with additional applications in high-temperature motors.
- Precision Engineering: Manufactured to standard specifications for reliable insulation, eliminating the need for additional cutting while effectively preventing current leakage.
- Thermal Stability: Maintains consistent performance under high-temperature conditions, ensuring safe operation of electrical equipment.
Technical Specifications
| Properties | Units | Values |
|---|---|---|
| Nominal thickness | mm | 0.15 | 0.18 | 0.20 | 0.23 | 0.25 | 0.3 | 0.35 |
| Thickness tolerance | mm | ±0.02 | ±0.03 | ±0.03 | ±0.03 | ±0.03 | ±0.03 | ±0.04 |
| Grammage and tolerance | g/m² | 140±20 | 190±28 | 220±33 | 260±39 | 300±45 | 350±52 | 425±63 |
| Film Nominal Thickness | mm | 0.05 | 0.075 | 0.1 | 0.125 | 0.15 | 0.19 | 0.25 |
Primary Applications
- Battery Safety: Prevents insulation wear and short circuits that could lead to battery fires
- Component Protection: Serves as a durable spacer between metal components
- Extended Lifespan: Reduces wear and tear to prolong battery service life
Quality Assurance
- Compliant with UL and IEC electrical insulation standards
- Custom colors and sizes available for OEM requirements
- Competitive bulk pricing for large volume orders
Vuoi conoscere maggiori dettagli su questo prodotto
