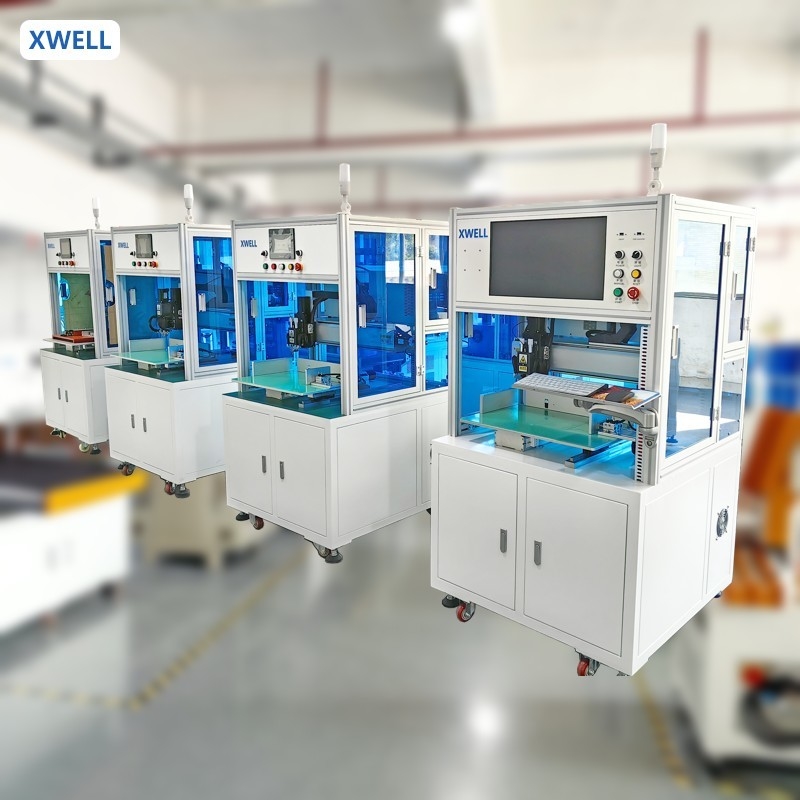

Automatic 18650 Cells Single Side Spot Welding Machine
Dettagli:
| Luogo di origine: | Cina |
| Marca: | XWELL |
| Certificazione: | CE |
| Numero di modello: | MD-ADW |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 1 pz |
|---|---|
| Prezzo: | USD 11000 - 15000 / pcs |
| Imballaggi particolari: | Scatola di legno |
| Tempi di consegna: | 10-15 giorni |
| Termini di pagamento: | T/T, Western Union, L/C |
| Capacità di alimentazione: | 100 pezzi al mese |
|
Informazioni dettagliate |
|||
| Colore: | Opzionale | Numero capo: | 2 pezzi |
|---|---|---|---|
| Sistema operativo: | Sistema embedded | Interfaccia utente: | Schermo tattile |
| Fonte di energia: | 5000A / 8000A / 10000A facoltativo | Efficienza: | 3800 pezzi/ora |
| Corso di forza dell'apparecchiatura: | 500*350 (mm) circa 760 18650 cellule | Capacità di carico massima: | 200-400 pezzi (batteria al litio 18650 standard) |
| Sistema operativo: | sistema integrato + schermo uomo-macchina | Modalità di trasmissione: | passo + cintura + rotaia di guida lineare di precisione importata (servo + vite opzionale) |
| Evidenziare: | 18650 battery spot welder,automatic lithium cell welder,single side spot welding machine |
||
Descrizione di prodotto
Automatic 18650 Cells Single Side Spot Welding Machine
This machine is used for 18650,26650,32650 cylinder battery pack automatic spot welding.
Features :
1.Support break point start, support automatic start and manual start mode conversion.
2.It has a false spot welding and out of spot welding alarm function.
3.Programming is simple, and it supports any point programming and array programming. 999 groups can be saved programming files.
4.Welding needle replacement forecast reminder.
5.Own welding current monitoring system, real-time monitoring of welding current.
Product Specification
|
SPECIFICATIONS FOR MD-ASW AND MD-ADW
|
|||
| MD-ASW | MD-ADW | ||
|
Welding Head Number
|
1
|
2
|
|
|
Travel
|
X: 400mm; Y: 400mm
|
Y: 500mm; Z: 350mm
|
|
|
Welding Spped
|
0.5s/spot, 2000-2500pcs/h
|
0.5s/spot, 3500-4000pcs/h
|
|
|
Welder Power Suppler
|
5000A Inverter Spot Welder
|
||
|
Max Motor Speed
|
1000mm/s
|
||
|
Max Battery Number
|
450 pcs (18650)
|
||
|
Operate System
|
Embedded system
|
||
|
User Interface
|
Touch screen
|
||
|
Drive Mode
|
Step motor and precision guide rail
|
||
|
Power Supply
|
220V/50Hz(machine); 3 phase, 380V/50Hz(Welder)
|
||
|
Air Pressure
|
0.3-0.6 MPa
|
||
|
Machine Size
|
900L*900W*1750Hmm
|
1100L*900W*1930Hmm
|
|
|
Machine Weight
|
200kg
|
350kg
|
|
Product Application
MD-ADW can be used in electric tool battery, torsion car battery, Energy Storage Battery Pack, Scooter Electric Vehicle Battery, etc. Compared with manual spot welding, the efficiency and accuracy of welding have been greatly improved.
Product Operation
1. Setting the parameters of welding on the touch screen. (The same product only need to be set once)
2. Put the fixture with the battery pack on the quick clamping position.
3. Press the start button, the machine automatically complete all welding actions.
4. The welder sound to prompt operator replacement of new fixture (battery pack).
Double side spot welder details
Cylindrical battery pack welding samples
