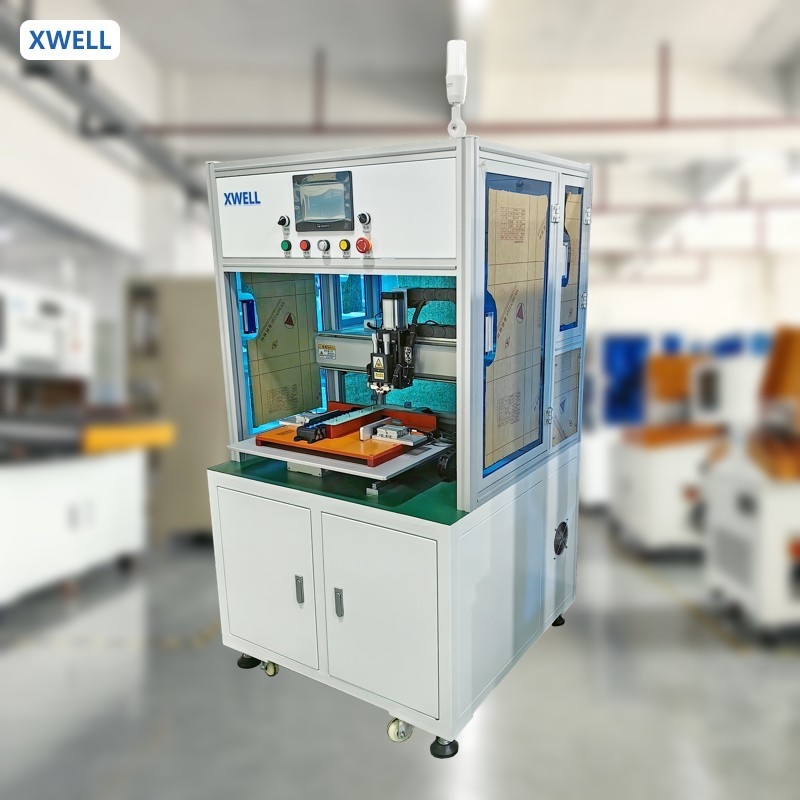

8000A Transistor Power Supply Single Sided Automatic Battery Spot Welding Machine With PC
Dettagli:
| Luogo di origine: | Cina |
| Marca: | XWELL |
| Certificazione: | CE |
| Numero di modello: | MD-ADW |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 1 pz |
|---|---|
| Prezzo: | USD 11000 - 15000 / pcs |
| Imballaggi particolari: | Scatola di legno |
| Tempi di consegna: | 10-15 giorni |
| Termini di pagamento: | T/T, Western Union, L/C |
| Capacità di alimentazione: | 100 pezzi al mese |
|
Informazioni dettagliate |
|||
| Tipi di batterie: | Cellula cilindrica | Numero capo: | 2 pezzi |
|---|---|---|---|
| Sistema operativo: | Sistema embedded | Interfaccia utente: | Schermo tattile |
| Fonte di energia: | 5000A / 8000A / 10000A facoltativo | Efficienza: | 3800 pezzi/ora |
| Corso di forza dell'apparecchiatura: | 500*350 (mm) circa 760 18650 cellule | Capacità di carico massima: | 200-400 pezzi (batteria al litio 18650 standard) |
| Sistema operativo: | sistema integrato + schermo uomo-macchina | Modalità di trasmissione: | passo + cintura + rotaia di guida lineare di precisione importata (servo + vite opzionale) |
| Evidenziare: | 8000A transistor spot welder,single-sided battery spot welding machine,PC-controlled lithium spot welder |
||
Descrizione di prodotto
8000A Transistor Power Supply Single Sided Automatic Battery Spot Welding Machine With PC
Products Description
MD-ADW is suitable for battery pack spot welding and assembly in the factory for 14500 / 18650 / 21700 / 26650 / 32700/33140 multi-parallel multi-series combination.It can be used in electric tool battery, torsion car battery, Energy Storage Battery Pack, Scooter Electric Vehicle Battery, etc. Compared with manual spot welding, the efficiency and accuracy of welding have been greatly improved. Humanized design makes the operation and debugging very easy and convenient. Design of components built-in makes appearance more concise.
Features
- Support breakpoint start, automatic start, and manual start.
- Easy program, support matrix, array and point program, can store 100 group parameters.
- Welding needle abrasion alarm.
- Build-in welding current monitor, can display real time welding current.
- Design for NB, Power Tool, Gardening Tool, High Power, Energy Storage battery, Electric Motor Car Battery Pack, and other
- lithium battery packs spot welding.
- Can be matched with the production line of lithium battery group.
- Can store dozens process of different battery packs product, switching products without re-setting parameters.
- Can match a variety brand of spot welders.
Product Specification
SPECIFICATIONS FOR MD-ASW AND MD-ADW | |||
| MD-ASW | MD-ADW | ||
Welding Head Number | 1 | 2 | |
Travel | X: 400mm; Y: 400mm | Y: 500mm; Z: 350mm | |
Welding Spped | 0.5s/spot, 2000-2500pcs/h | 0.5s/spot, 3500-4000pcs/h | |
Welder Power Suppler | 5000A Inverter Spot Welder | ||
Max Motor Speed | 1000mm/s | ||
Max Battery Number | 450 pcs (18650) | ||
Operate System | Embedded system | ||
User Interface | Touch screen | ||
Drive Mode | Step motor and precision guide rail | ||
Power Supply | 220V/50Hz(machine); 3 phase, 380V/50Hz(Welder) | ||
Air Pressure | 0.3-0.6 MPa | ||
Machine Size | 900L*900W*1750Hmm | 1100L*900W*1930Hmm | |
Machine Weight | 200kg | 350kg | |
Product Application
MD-ADW can be used in electric tool battery, torsion car battery, Energy Storage Battery Pack, Scooter Electric Vehicle Battery, etc. Compared with manual spot welding, the efficiency and accuracy of welding have been greatly improved.
Product Operation
1. Setting the parameters of welding on the touch screen. (The same product only need to be set once)
2. Put the fixture with the battery pack on the quick clamping position.
3. Press the start button, the machine automatically complete all welding actions.
4. The welder sound to prompt operator replacement of new fixture (battery pack).
Double side spot welder details
Cylindrical battery pack welding samples
