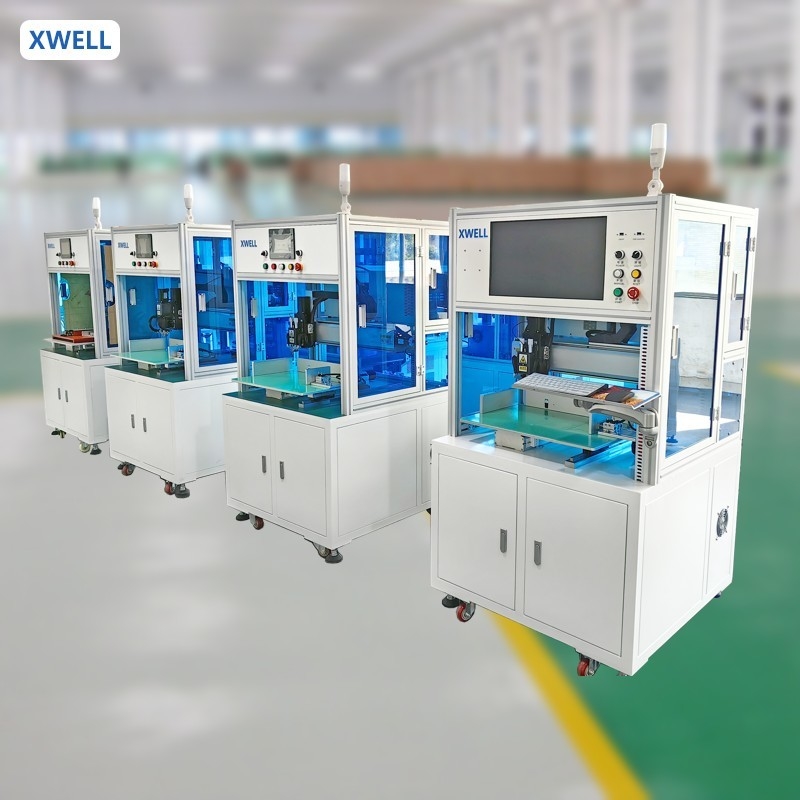

Tab Type Lithium Battery Spot Welder Cylindrical Core Single Side Automatic Spot Welder
Dettagli:
| Luogo di origine: | Cina |
| Marca: | XWELL |
| Certificazione: | CE |
| Numero di modello: | MD-ADW |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 1 pz |
|---|---|
| Prezzo: | USD 11000 - 15000 / pcs |
| Imballaggi particolari: | Scatola di legno |
| Tempi di consegna: | 10-15 giorni |
| Termini di pagamento: | T/T, Western Union, L/C |
| Capacità di alimentazione: | 100 pezzi al mese |
|
Informazioni dettagliate |
|||
| Tipi di batterie: | Cellula cilindrica | Numero capo: | 2 pezzi |
|---|---|---|---|
| Sistema operativo: | Sistema embedded | Interfaccia utente: | Schermo tattile |
| Fonte di energia: | 5000A / 8000A / 10000A facoltativo | Efficienza: | 3800 pezzi/ora |
| Corso di forza dell'apparecchiatura: | 500*350 (mm) circa 760 18650 cellule | Capacità di carico massima: | 200-400 pezzi (batteria al litio 18650 standard) |
| Sistema operativo: | sistema integrato + schermo uomo-macchina | Modalità di trasmissione: | passo + cintura + rotaia di guida lineare di precisione importata (servo + vite opzionale) |
| Evidenziare: | tab type lithium battery spot welder,cylindrical core spot welding machine,automatic single side spot welder |
||
Descrizione di prodotto
Tab Type Lithium Battery Spot Welder Cylindrical Core Single Side Automatic Spot Welder
Main functions:
Cylindrical single-sided automatic welding of the cylindrical cells
The cylindrical battery pack is automatically welded with BMS PCB nickel pad
Product characteristics:
♦ The warranty has the warranty is two years
♦ Equipment debugging is easy to learn easy to understand, change the model speed is fast
♦ The device has three spot welding data input, array input and U disk input
♦ Point welding specification welding can be set (different current welding for positive and negative electrodes)
♦ Current is too small or abnormal machine automatic alarm and stop operation during welding
Product Specification
|
SPECIFICATIONS FOR MD-ASW AND MD-ADW
|
|||
| MD-ASW | MD-ADW | ||
|
Welding Head Number
|
1
|
2
|
|
|
Travel
|
X: 400mm; Y: 400mm
|
Y: 500mm; Z: 350mm
|
|
|
Welding Spped
|
0.5s/spot, 2000-2500pcs/h
|
0.5s/spot, 3500-4000pcs/h
|
|
|
Welder Power Suppler
|
5000A Inverter Spot Welder
|
||
|
Max Motor Speed
|
1000mm/s
|
||
|
Max Battery Number
|
450 pcs (18650)
|
||
|
Operate System
|
Embedded system
|
||
|
User Interface
|
Touch screen
|
||
|
Drive Mode
|
Step motor and precision guide rail
|
||
|
Power Supply
|
220V/50Hz(machine); 3 phase, 380V/50Hz(Welder)
|
||
|
Air Pressure
|
0.3-0.6 MPa
|
||
|
Machine Size
|
900L*900W*1750Hmm
|
1100L*900W*1930Hmm
|
|
|
Machine Weight
|
200kg
|
350kg
|
|
Product Application
MD-ADW can be used in electric tool battery, torsion car battery, Energy Storage Battery Pack, Scooter Electric Vehicle Battery, etc. Compared with manual spot welding, the efficiency and accuracy of welding have been greatly improved.
Product Operation
1. Setting the parameters of welding on the touch screen. (The same product only need to be set once)
2. Put the fixture with the battery pack on the quick clamping position.
3. Press the start button, the machine automatically complete all welding actions.
4. The welder sound to prompt operator replacement of new fixture (battery pack).
Double side spot welder details
Cylindrical battery pack welding samples
